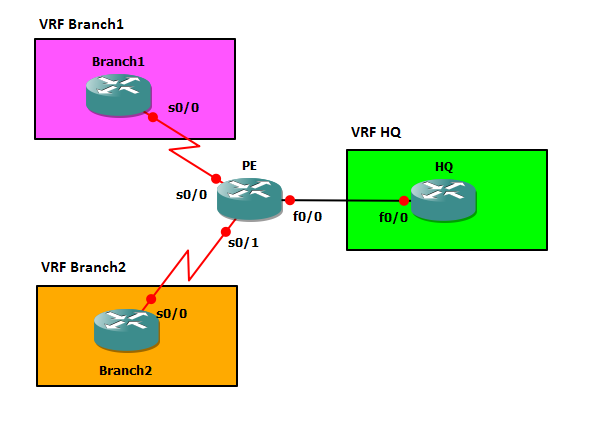

L3VPN route leakage
18/02/2013 20:18
PE#sh ip bgp vpnv4 all 10.0.1.0/24
BGP routing table entry for 10:1:10.0.1.0/24, version 19
Paths: (1 available, best #1, table Branch1)
Not advertised to any peer
10
192.168.2.2 from 192.168.2.2 (10.0.1.1)
Origin IGP, metric 0, localpref 100, valid, external, best
Extended Community: RT:10:1,
mpls labels in/out 21/nolabel
BGP routing table entry for 10:3:10.0.1.0/24, version 21
Paths: (1 available, best #1, table HQ)
Advertised to update-groups:
1
10, imported path from 10:1:10.0.1.0/24
192.168.2.2 from 192.168.2.2 (10.0.1.1)
Origin IGP, metric 0, localpref 100, valid, external, best
Extended Community: RT:10:1
PE#
PE#sh ip bgp vpnv4 all
BGP table version is 24, local router ID is 192.168.2.1
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
r RIB-failure, S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 10:1 (default for vrf Branch1)
*> 10.0.1.0/24 192.168.2.2 0 0 10 i
*> 10.0.2.0/24 192.168.3.2 0 0 10 i
r> 192.168.2.0/30 192.168.2.2 0 0 10 i
*> 192.168.3.0/30 192.168.3.2 0 0 10 i
Route Distinguisher: 10:2 (default for vrf Branch2)
*> 10.0.0.0/24 192.168.1.2 0 0 10 i
*> 10.0.1.0/24 192.168.2.2 0 0 10 i
r> 192.168.1.0/30 192.168.1.2 0 0 10 i
*> 192.168.2.0/30 192.168.2.2 0 0 10 i
Route Distinguisher: 10:3 (default for vrf HQ)
*> 10.0.0.0/24 192.168.1.2 0 0 10 i
*> 10.0.1.0/24 192.168.2.2 0 0 10 i
*> 10.0.2.0/24 192.168.3.2 0 0 10 i
*> 192.168.1.0/30 192.168.1.2 0 0 10 i
*> 192.168.2.0/30 192.168.2.2 0 0 10 i
r> 192.168.3.0/30 192.168.3.2 0 0 10 i
PE#
Branch to HQ.
Branch1#ping 10.0.2.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.0.2.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 20/76/240 ms
Ping Branch to Branch over HQ, traffic pulled by default route originated by HQ router.
Branch2#ping 10.0.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.0.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 52/122/276 ms
Branch2#trace 10.0.1.1
Type escape sequence to abort.
Tracing the route to 10.0.1.1
1 192.168.1.1 80 msec 140 msec 28 msec
2 192.168.3.2 [AS 10] 60 msec 24 msec 48 msec
3 192.168.3.1 [AS 10] 44 msec 40 msec 32 msec
4 192.168.2.2 [AS 10] 156 msec * 112 msec
Route leakage in VRF import/export RTs.
ip vrf Branch1
rd 10:1
route-target export 10:1
route-target import 10:3
!
ip vrf Branch2
rd 10:2
route-target export 10:2
route-target import 10:3
!
ip vrf HQ
rd 10:3
route-target export 10:3
route-target import 10:1
route-target import 10:2
!
